新到Cypress全新原装CY8CKIT-002 PSoC MiniProg3 编程和调试套件,2015年最新的Revision B版本,比最早期的A版可靠性更高。CY8CKIT-002 PSoC MiniProg3支持PSoC全系列的器件编程和仿真. 早期的A版硬件设计缺少保护，很容易造成使用不当而损坏；B版在端口增加了短路保护等措施提高了可靠性，使得整体的稳定性和性能都有提升，同时具有更快的连接和下载速度，是PSoC编程调试的最理想工具。 用户在购买时一定要认清不同的版本，避免购买到清仓老版本而造成损失。 CY8CKIT-002 PSoC MiniProg3最新B版在包装底面会有标示，本店全部是最新拿到的2015年B版原装现货，决不是其他店里的老版本所能比的。

CY8CKIT-002 PSoC MiniProg3官方介绍如下：

The Miniprog3 supports the following protocols:

• 1、SWD
• 2、JTAG
• 3、ISSP
• 4、USB-I2C

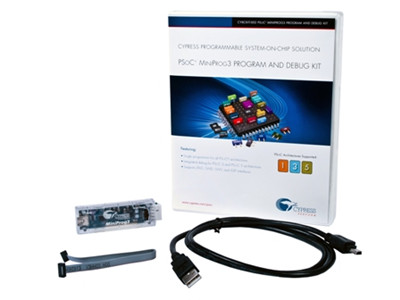

Included with the kit is a 10-pin ribbon cable for connecting to standard 10-pin JTAG header interfaces utilized for our PSoC 3, PSoC 4 and PSoC 5LP architectures while the device itself supports the 5-pin ISSP programming header for PSoC 1 architectures.The 5-pin connector also supports the USB-I2C Bridging capabilities and is a superset of the CY3240capabilities.Please note, the CY8CKIT-002 only contains the Miniprog3 and supporting cables.



Miniprog3 *B Revision Update:

Cypress Semiconductor has completed a hardware update to the Miniprog3 to address hardware issues seen with programming, ESD, and power management.The Miniprog3 revision, either *A or *B, is indicated using sticker on the back of the programmer.The following are a list of updates made to the Miniprog3 *B programmer.

Updated Hardware to Improve Power Cycle Programming:

The Miniprog3 hardware has been updated to better improve power cycle programming for all PSoC devices.It was discovered that the Miniprog3 *A programmer revision did not correctly implement the power cycle programming methodology.Due to this issue the Miniprog3 *A programmer could not correctly support power cycle programming for PSoC 3, PSoC 4 and PSoC 5LP  devices.This specifically impacts customers who do not route out the XRES line to the programming connector or disable the optional XRES line on certain devices.The *B revision of the Miniprog3 will support power cycle programming for all PSoC 3, PSoC 4 and PSoC 5LP devices.

Over-current and Non-Polarized Connection Updates:

There are known electrical risks to the Miniprog3 *A revision that have been addressed with the *B update.To address the electrical issues the Miniprog3 *B programmer has added ESD over-current protection to the USB lines and has added electrical protection to the 5 and 10-pin connectors in case of a reverse polarity condition.

Improved Voltage Detection Capabilities:

The Miniprog3 *B programmer has been updated to improve the voltage detection capabilities.The Miniprog3 will measure the target voltage within an accuracy of 20 mV for a range of 1.8V – 5.0V.

Supported Software:

The Miniprog3 *B programmer is supported on the latest release of PSoC Programmer.To download the latest release, please navigate to the PSoC Programmer web page:

www.cypress.com/go/psocprogrammer
