产品特性
-
使用JLINK V8原装的固件程序,支持自动升级
-
完全参照原装JLINK V8的电路原理
-
完全参照原装JLINK V8的电路布局
-
完全参照原装JLINK V8的线路走线
-
电源电路使用大容量无极电容做为滤波,与原装JLINK V8相同
-
使用一只红绿双色LED指示内部工作状态(绿灯指示工作状态,红灯指示复位状态),与原装JLINK V8相同
-
输出电路使用两片74ALVC164245,SWD和JTAG都支持1.2-5V电压,与原装JLINK V8相同
-
本品设计以原装JLINK V8为目标,性能稳定,已达到或接近原装JLINK V8的性能
-
在与V7对比测试中,可以明显感觉到V8的擦除和烧写速度更快,更平稳
-
机器贴片生产,严格的质量检验,使产品的品质100%合格,请放心使用
主要特点
-
IAR EWARM集成开发环境无缝连接的JTAG仿真器
-
支持所有ARM7/ARM9内核的芯片,以及cortex M3,包括Thumb模式
-
下载速度高达ARM7:600kB/s,ARM9:550kB/s,通过DCC最高可达800 kB/s
-
最高JTAG速度12 MHz
-
目标板电压范围1.2V –3.3V,5V兼容
-
自动速度识别功能
-
监测所有JTAG信号和目标板电压
-
使用USB电源(但不对目标板供电)
-
支持多JTAG器件串行连接
-
标准20芯JTAG仿真插头
-
带J-Link TCP/IP server,允许通过TCP/ IP网络使用J-Link
支持的软件
-
直接支持ADS,IAR,KEIL,WINARM,REALVIEW等开发环境
支持的器件
新器件不断增加中......
品牌 |
型号 |
|
STA2051,STM32F101C4, STM32F101C6, STM32F101C8, STM32F101CB, STM32F101R4, STM32F101R6, STM32F101R8, STM32F101RB, STM32F101RC, STM32F101RD, STM32F101RE, STM32F101T4, STM32F101T6, STM32F101T8, STM32F101V8, STM32F101VB, STM32F101VC, STM32F101VD, STM32F101VE, STM32F101ZC, STM32F101ZD, STM32F101ZE, STM32F102C4, STM32F102C6, STM32F102C8, STM32F102CB, STM32F102R4, STM32F102R6, STM32F102R8, STM32F102RB, STM32F103C4, STM32F103C6, STM32F103C8, STM32F103CB, STM32F103R4, STM32F103R6, STM32F103R8, STM32F103RB, STM32F103RC, STM32F103RD, STM32F103RE, STM32F103T4, STM32F103T6, STM32F103T8, STM32F103V8, STM32F103VB, STM32F103VC, STM32F103VD, STM32F103VE, STM32F103ZC, STM32F103ZD, STM32F103ZE, STM32F105R8, STM32F105RB, STM32F105RC, STM32F105V8, STM32F105VB, STM32F105VC, STM32F107RB, STM32F107RC, STM32F107VB, STM32F107VC, STR710FZ1, STR710FZ2, STR711FR0, STR711FR1, STR711FR2, STR712FR0, STR712FR1, STR712FR2, STR715FR0, STR730FZ1, STR730FZ2, STR731FV0, STR731FV1, STR731FV2, STR735FZ1, STR735FZ2, STR736FV0, STR736FV1, STR750FL2, STR750FV0, STR750FV1, STR750FV2, STR751FR0, STR751FR1, STR751FR2, STR752FR0, STR752FR1, STR752FR2, STR755FR0, STR755FR1, STR755FR2, STR755FV0, STR755FV1, STR755FV2, STR910FAM32, STR910FAW32, STR910FAZ32, STR910FM32, STR910FW32, STR911FAM42, STR911FAM44, STR911FAM46, STR911FAM47, STR911FAW42, STR911FAW44, STR911FAW46, STR911FAW47, STR911FM42, STR911FM44, STR912FAW42, STR912FAW44, STR912FAW46, STR912FAW47, STR912FAZ42, STR912FAZ44, STR912FAZ46, STR912FAZ47, STR912FW42, STR912FW44 |
|
LH75400, LH75401, LH75410, LH75411, LH79520, LH79524, LH79525, LH7A400, LH7A404, LPC1102UK, LPC1111/101, LPC1111/102, LPC1111/201, LPC1111/202, LPC1112/101, LPC1112/102, LPC1112/201, LPC1112/202, LPC1113/201, LPC1113/202, LPC1113/301, LPC1113/302, LPC1114/201, LPC1114/202, LPC1114/301, LPC1114/302, LPC11C12/301, LPC11C14/301, LPC11C22/301, LPC11C24/301, LPC11U12/201, LPC11U13/201, LPC11U14/201, LPC1224/101, LPC1224/121, LPC1225/301, LPC1225/321, LPC1226/301, LPC1227/301, LPC1311, LPC1311/01, LPC1313, LPC1313/01, LPC1342, LPC1343, LPC1751, LPC1752, LPC1754, LPC1756, LPC1758, LPC1759, LPC1763, LPC1764, LPC1765, LPC1766, LPC1767, LPC1768, LPC1769, LPC1774, LPC1776, LPC1777, LPC1778, LPC1785, LPC1786, LPC1787, LPC1788, LPC1810, LPC1820, LPC1830, LPC1850, LPC2101, LPC2102, LPC2103, LPC2104, LPC2104/01, LPC2105, LPC2105/01, LPC2106, LPC2106/01, LPC2109, LPC2109/01, LPC2114, LPC2114/01, LPC2119, LPC2119/01, LPC2124, LPC2124/01, LPC2129, LPC2129/01, LPC2131, LPC2131/01, LPC2132, LPC2132/01, LPC2134, LPC2134/01, LPC2136, LPC2136/01, LPC2138, LPC2138/01, LPC2141, LPC2142, LPC2144, LPC2146, LPC2148, LPC2194, LPC2194/01, LPC2210, LPC2210/01, LPC2212, LPC2212/01, LPC2214, LPC2214/01, LPC2220, LPC2290, LPC2290/01, LPC2292, LPC2292/01, LPC2294, LPC2294/01, LPC2361, LPC2362, LPC2364, LPC2365, LPC2366, LPC2367, LPC2368, LPC2377, LPC2378, LPC2387, LPC2388, LPC2420, LPC2458, LPC2460, LPC2468, LPC2470, LPC2478, LPC2880, LPC2888, LPC2917, LPC2917/01, LPC2919, LPC2919/01, LPC2921, LPC2923, LPC2925, LPC2926, LPC2927, LPC2929, LPC2930, LPC2939, LPC3130, LPC3131, LPC3141, LPC3143, LPC3152, LPC3154, LPC3180, LPC3220, LPC3230, LPC3240, LPC3250, SJA2010 |
|
S3C2410A, S3C2440A, S3C44B0X, S3C4510B, S3F4A0KR, S3F4A1HR, S3F4A2FR, S3FM02G |
|
AT91C140, AT91F40416, AT91F40816, AT91FR40162, AT91FR4042, AT91FR4081, AT91M40400, AT91M40800, AT91M40807, AT91M42800A, AT91M43300, AT91M55800A, AT91M63200, AT91R40008, AT91R40807, AT91RM3400, AT91RM9200, AT91SAM3S1A, AT91SAM3S1B, AT91SAM3S1C, AT91SAM3S2A, AT91SAM3S2B, AT91SAM3S2C, AT91SAM3S4A, AT91SAM3S4B, AT91SAM3S4C, AT91SAM3U1C, AT91SAM3U1E, AT91SAM3U2C, AT91SAM3U2E, AT91SAM3U4C, AT91SAM3U4E, AT91SAM7A1, AT91SAM7A2, AT91SAM7A3, AT91SAM7L128, AT91SAM7L64, AT91SAM7S128, AT91SAM7S16, AT91SAM7S161, AT91SAM7S256, AT91SAM7S32, AT91SAM7S321, AT91SAM7S512, AT91SAM7S64, AT91SAM7SE256, AT91SAM7SE32, AT91SAM7SE512, AT91SAM7X128, AT91SAM7X256, AT91SAM7X512, AT91SAM7XC128, AT91SAM7XC256, AT91SAM7XC512, AT91SAM9260, AT91SAM9261, AT91SAM9261S, AT91SAM9263, AT91SAM9G10, AT91SAM9G20, AT91SAM9G45, AT91SAM9M10, AT91SAM9R64, AT91SAM9RL64, AT91SAM9XE128, AT91SAM9XE256, AT91SAM9XE512, SAM3N1A, SAM3N1B, SAM3N1C, SAM3N2A, SAM3N2B, SAM3N2C, SAM3N4A, SAM3N4B, SAM3N4C |
|
TMS470R1A128, TMS470R1A256, TMS470R1A288, TMS470R1A384, TMS470R1A64, TMS470R1B1M, TMS470R1B512, TMS470R1B768 |
|
MAC7101, MAC7104, MAC7105, MAC7106, MAC7111, MAC7112, MAC7114, MAC7115, MAC7116, MAC7121, MAC7122, MAC7124, MAC7125, MAC7126, MAC7131, MAC7134, MAC7135, MAC7136, MAC7141, MAC7142, MAC7144, MC9328MX21, MCIMX27, MCIMX27L, MK10N512VMD100, MK10X128VMD100, MK10X256VMD100, MK20N512VMD100, MK20X128VMD100, MK20X256VMD100, MK30N512VMD100, MK30X128VMD100, MK30X256VMD100, MK40N512VMD100, MK40X128VMD100, MK40X256VMD100, MK50N512CMD100, MK51N512CMD100, MK52N512CMD100, MK53N512CMD100, MK60N512VMD100, MK60X256VMD100 |
|
ML674000, ML674001, ML674002, ML674003, ML675001, ML675002, ML675003, ML675011, ML67Q4050, ML67Q4051, ML67Q4060, ML67Q4061, ML67Q5250, ML67Q5260, ML696201, ML69Q6203 |
|
ADuC7019, ADuC7020, ADuC7021, ADuC7022, ADuC7023, ADuC7024, ADuC7025, ADuC7026, ADuC7027, ADuC7028, ADuC7030, ADuC7032, ADuC7033, ADuC7034, ADuC7036, ADuC7037, ADuC7038, ADuC7039, ADuC7060, ADuC7061, ADuC7062, ADuC7122, ADuC7128, ADuC7129, ADuC7229 |
|
LM3S101, LM3S102, LM3S1110, LM3S1133, LM3S1138, LM3S1150, LM3S1162, LM3S1165, LM3S1166, LM3S1332, LM3S1435, LM3S1439, LM3S1512, LM3S1538, LM3S1601, LM3S1607, LM3S1608, LM3S1620, LM3S1621, LM3S1625, LM3S1626, LM3S1627, LM3S1635, LM3S1636, LM3S1637, LM3S1651, LM3S1751, LM3S1776, LM3S1811, LM3S1816, LM3S1850, LM3S1911, LM3S1918, LM3S1937, LM3S1958, LM3S1960, LM3S1968, LM3S1969, LM3S1B21, LM3S1J11, LM3S1J16, LM3S1N11, LM3S1N16, LM3S1P51, LM3S1R21, LM3S1R26, LM3S1W16, LM3S1Z16, LM3S2110, LM3S2139, LM3S2276, LM3S2410, LM3S2412, LM3S2432, LM3S2533, LM3S2601, LM3S2608, LM3S2616, LM3S2620, LM3S2637, LM3S2651, LM3S2671, LM3S2678, LM3S2730, LM3S2739, LM3S2776, LM3S2793, LM3S2911, LM3S2918, LM3S2919, LM3S2939, LM3S2948, LM3S2950, LM3S2965, LM3S2B93, LM3S300, LM3S301, LM3S308, LM3S310, LM3S315, LM3S316, LM3S317, LM3S328, LM3S3634, LM3S3651, LM3S3739, LM3S3748, LM3S3749, LM3S3826, LM3S3J26, LM3S3N26, LM3S3W26, LM3S3Z26, LM3S5632, LM3S5651, LM3S5652, LM3S5656, LM3S5662, LM3S5732, LM3S5737, LM3S5739, LM3S5747, LM3S5749, LM3S5752, LM3S5762, LM3S5791, LM3S5951, LM3S5956, LM3S5B91, LM3S5K31, LM3S5K36, LM3S5P31, LM3S5P36, LM3S5P51, LM3S5P56, LM3S5R31, LM3S5R36, LM3S5T36, LM3S5Y36, LM3S600, LM3S601, LM3S608, LM3S610, LM3S6100, LM3S611, LM3S6110, LM3S612, LM3S613, LM3S615, LM3S617, LM3S618, LM3S628, LM3S6420, LM3S6422, LM3S6432, LM3S6537, LM3S6610, LM3S6611, LM3S6618, LM3S6633, LM3S6637, LM3S6730, LM3S6753, LM3S6911, LM3S6918, LM3S6938, LM3S6950, LM3S6952, LM3S6965, LM3S800, LM3S801, LM3S808, LM3S811, LM3S812, LM3S815, LM3S817, LM3S818, LM3S828, LM3S8530, LM3S8538, LM3S8630, LM3S8730, LM3S8733, LM3S8738, LM3S8930, LM3S8933, LM3S8938, LM3S8962, LM3S8970, LM3S8971, LM3S9781, LM3S9790, LM3S9792, LM3S9997, LM3S9B81, LM3S9B90, LM3S9B92, LM3S9B95, LM3S9B96, LM3S9L97 |
|
A2F200M3F, A2F500M3G, COREMP7, Cortex-M1 |
|
CS740110-IQZ, CS740120-IQZ, CS740130-IQZ |
|
EM351, EM357 |
|
EFM32G200F16, EFM32G200F32, EFM32G200F64, EFM32G210F128, EFM32G230F128, EFM32G230F32, EFM32G230F64, EFM32G280F128, EFM32G280F32, EFM32G280F64, EFM32G290F128, EFM32G290F32, EFM32G290F64, EFM32G840F128, EFM32G840F32, EFM32G840F64, EFM32G880F128, EFM32G880F32, EFM32G880F64, EFM32G890F128, EFM32G890F32, EFM32G890F64, EFM32TG108F16, EFM32TG108F32, EFM32TG108F4, EFM32TG108F8, EFM32TG110F16, EFM32TG110F32, EFM32TG110F4, EFM32TG110F8, EFM32TG210F16, EFM32TG210F32, EFM32TG210F8, EFM32TG230F16, EFM32TG230F32, EFM32TG230F8, EFM32TG840F16, EFM32TG840F32, EFM32TG840F8 |
|
MB9AF102N, MB9AF102R, MB9AF104N, MB9AF104R, MB9AF112L, MB9AF112M, MB9AF112N, MB9AF114L, MB9AF114M, MB9AF114N, MB9AF115M, MB9AF115N, MB9AF116M, MB9AF116N, MB9AF312L, MB9AF312M, MB9AF312N, MB9AF314L, MB9AF314M, MB9AF314N, MB9AF315M, MB9AF315N, MB9AF316M, MB9AF316N, MB9BF104N, MB9BF104R, MB9BF105N, MB9BF105R, MB9BF106N, MB9BF106R, MB9BF304N, MB9BF304R, MB9BF305N, MB9BF305R, MB9BF306N, MB9BF306R, MB9BF404N, MB9BF404R, MB9BF405N, MB9BF405R, MB9BF406N, MB9BF406R, MB9BF504N, MB9BF504R, MB9BF505N, MB9BF505R, MB9BF506N, MB9BF506R |
|
HT32F1251, HT32F1251B, HT32F1252, HT32F1253 |
|
M0516LAN, M0516ZAN, M052LAN, M052ZAN, M054LAN, M054ZAN, M058LAN, M058ZAN, NUC100LC1AN, NUC100LD1AN, NUC100LD2AN, NUC100LD3AN, NUC100LE3AN, NUC100RC1AN, NUC100RD1AN, NUC100RD2AN, NUC100RD3AN, NUC100RE3AN, NUC100VD2AN, NUC100VD3AN, NUC100VE3AN, NUC101LC1AN, NUC101LD2AN, NUC101LE3AN, NUC101RC1AN, NUC101RD2AN, NUC101RE3AN, NUC101VC1AN, NUC101VD2AN, NUC101VE3AN, NUC120LC1AN, NUC120LD1AN, NUC120LD2AN, NUC120LD3AN, NUC120LE3AN, NUC120RC1AN, NUC120RD1AN, NUC120RD2AN, NUC120RD3AN, NUC120RE3AN, NUC120VD2AN, NUC120VD3AN, NUC120VE3AN, NUC122LC1AN, NUC122LD2AN, NUC122SC1AN, NUC122SD2AN, NUC122ZC1AN, NUC122ZD2AN, NUC130LD2AN, NUC130LD3AN, NUC130LE3AN, NUC130RD2AN, NUC130RD3AN, NUC130RE3AN, NUC130VD2AN, NUC130VD3AN, NUC130VE3AN, NUC140LD2AN, NUC140LD3AN, NUC140LE3AN, NUC140RD2AN, NUC140RD3AN, NUC140RE3AN, NUC140VD2AN, NUC140VD3AN, NUC140VE3AN, NUC710, NUC740, NUC745 |
|
BU1511KV2 |
|
PC7130, PC7230 |
|
TMPA900CMXBG, TMPA910CRAXBG, TMPM321F10FG, TMPM324F10FG, TMPM330FDFG, TMPM330FWFG, TMPM330FYFG, TMPM332FWUG, TMPM333FDFG, TMPM333FWFG, TMPM333FYFG, TMPM341FDXBG, TMPM360F20FG, TMPM361F10FG, TMPM362F10FG, TMPM363F10FG, TMPM364F10FG, TMPM370FYDFG, TMPM370FYFG, TMPM372FWUG, TMPM373FWDUG, TMPM374FWUG, TMPM380FWDFG, TMPM380FWFG, TMPM380FYDFG, TMPM380FYFG, TMPM382FSFG, TMPM382FWFG, TMPM390FWFG, TMPM395FWAXBG |
|
AS3525 |
|
ZA9L |
与目标板的连接接口
固件可升级
日后,ARM7, ARM9, Cortex-M系列单片机将会推出更多型号,亦会将新的器件型号添加入器件支持列表,当您在未来开发中需要使用最新的型号,只要升到SEGGER公司网站下载最新版本的固件,使用后仿真器会自动升级固件程序,这样得以支持新的型号!
固件升级注意事项
若升级使用最新的JLINK V8驱动版本(V4.40以上)的时候需要修改SN号才能继续使用。
连接目标板
J-Link V8下载器通过JTAG / SWD接口连接至ARM7, ARM9, Cortex-M目标板
请注意,VCC和GND切勿接反,以免烧坏J-Link V8下载器。
J-Link V8 LED灯的两种状态
-
J-Link V8绿灯指示工作状态。
-
J-Link V8红灯指示复位状态。
配置清单
-

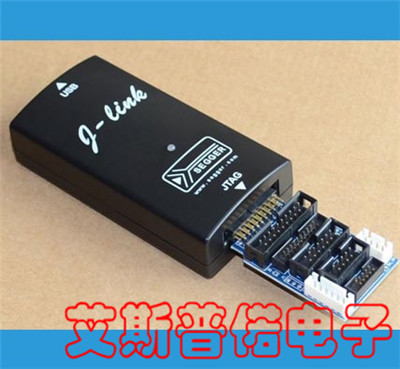

J-Link V8仿真器主机 x1
-
纯铜屏蔽USB线缆 x1
-
标准20PIN仿真排线 x1
-
多功能转接板 x1
-
资料光盘 x1
|
