| Plastronics-SSOP封装测试座 |
 |
SSOP封装
老化座/测试插座 |
| |
|
 |
| |
| |
|
Pitch |

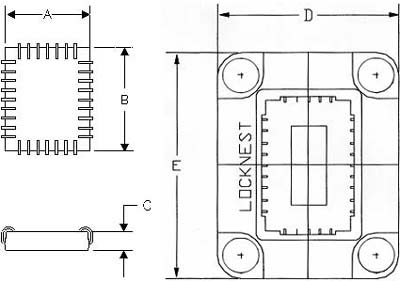

Device Dimensions (in) |
Socket Dimensions (in) |
| Part # |
Pins |
In. |
mm. |
Dim A |
Dim B |
Dim C |
Dim D |
Dim E |
Dim F |
| P2120SO |
20 |
0.0256 |
0.65 |
0.291 |
0.209 |
0.069 |
0.706 |
0.808 |
0.591 |
| P2024SO |
24 |
0.025 |
0.64 |
0.155 |
0.342 |
0.064 |
0.636 |
0.742 |
0.59 |
| P2124SO |
24 |
0.0256 |
0.65 |
0.307 |
0.22 |
0.59 |
0.706 |
0.808 |
0.591 |
| P2034SO |
34 |
0.04 |
1.02 |
0.3 |
0.71 |
0.1 |
0.806 |
1.12 |
0.59 |
| P2036SO |
36 |
0.0315 |
0.8 |
0.3 |
0.595 |
0.091 |
0.86 |
1.045 |
0.65 |
| P2044SO |
44 |
0.0315 |
0.8 |
0.3 |
0.72 |
0.097 |
0.86 |
1.17 |
0.65 |
| P2048SO |
48 |
0.025 |
0.64 |
0.295 |
0.63 |
0.098 |
0.806 |
1.14 |
0.59 |
| P2056SO |
56 |
0.025 |
0.64 |
0.295 |
0.73 |
0.098 |
0.806 |
1.14 |
0.59 |
|
|
|
|
