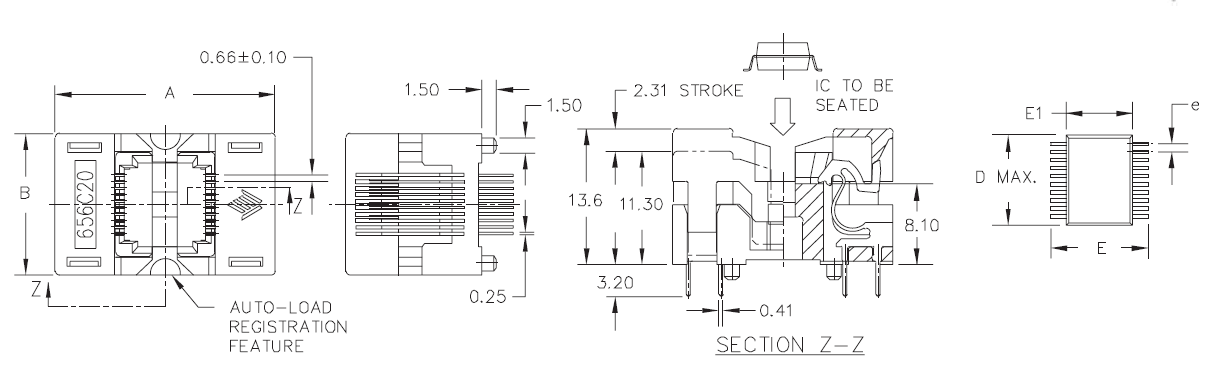

656 Series SSOP ZIF Socket

Lead Count Pitch e (mm) Package Dimensions (mm) Part Number Socket Dimensions (mm)
Width (E1) Lead Tip
to Tip (E)
 Length (D) Length (A) Width (B)
8 0.65 3.00 4.90 3.00 656-1082211 18.80 9.00
10 0.50 3.00 4.88 2.97 656-0102211 24.60 7.75
16 0.65 5.30 7.80 6.20 656C116221X 22.00 12.90
16 0.65 5.30 7.80 6.20 656C116221X-001 22.00 12.90
20 0.65 5.30 7.80 7.20 656C120221X 22.00 14.20
20 0.65 5.30 7.80 7.20 656C120221X-001 22.00 14.20
20(depop) 0.635 3.90 6.00 8.65 656-424201X 20.10 14.55
20(depop) 0.635 3.90 6.00 8.65 656-424201X-001 20.10 14.55
24 0.65 5.30 7.80 8.20 656C124221X 22.00 15.50
24 0.65 5.30 7.80 8.20 656C124221X-001 22.00 15.50
24 0.635 3.90 6.00 8.65 656-424221X 20.10 14.55
24 0.635 3.90 6.00 8.65 656-424221X-001 20.10 14.55
28 0.65 6.10 8.10 9.70 656S132281X 22.30 18.10
30 0.50 4.40 6.40 7.80 656J0302212 15.70 14.70
32 0.65 6.10 8.10 11.00 656S132221X 22.30 18.10
32 0.80 5.30 7.80 14.50 656C232221X 22.00 20.35
36(depop) 0.80 7.52 10.31 15.84 656D244361X-010 24.40 24.00
38 0.50 4.40 6.40 9.70 656J0382212 15.70 14.70
44 0.80 7.50 10.35 17.90 656D244221X 24.40 24.00
44 0.80 7.50 10.35 17.90 656d244221x-001 24.40 24.00
48(depop) 0.50 6.20 8.10 12.70 * 656K0564811 28.20 20.00
56 0.50 6.20 8.10 14.00 * 656K0562211 28.20 20.00
56 0.80 13.30 16.00 23.85 * 656-2562211 24.10 28.00
